On ultra-high voltage (UHV) transmission towers and power lines, we often see metal cables strung atop the cables; these are OPGW optical cables-fiber optic composite overhead ground wires. They serve as both "lightning protection armor" for the power system and a "high-speed channel" for grid communication, making them an indispensable core component of modern high-voltage and UHV power grids.
OPGW optical cable is a special cable that combines optical fiber units with an overhead ground wire. It does not occupy additional line resources, directly replacing traditional lightning protection wires, and simultaneously achieving both lightning protection grounding and high-speed communication functions. It is widely used in 110kV to 1000kV UHV lines.

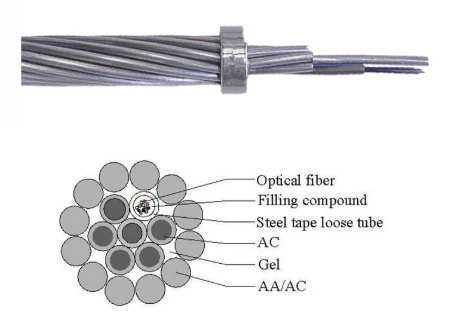

Structurally, OPGW adopts a layered design, making it robust, reliable, and tightly protected. The core is the optical fiber unit, typically encapsulated in a stainless steel tube or aluminum frame, containing the communication optical fiber. The tube is filled with fiber grease, providing waterproofing, shockproofing, and lateral pressure resistance, ensuring that the optical fiber does not attenuate or break under extreme conditions.
The middle layer is a reinforcing layer, using high-tensile aluminum-clad steel wire or aluminum alloy wire to enhance the overall mechanical strength of the cable. It can withstand the tensile forces from strong winds, icing, and temperature differences, ensuring long-term stable operation of the line.
The outer layer is a conductive stranded wire layer, made of conductive materials such as aluminum-clad steel and aluminum alloy. It possesses excellent conductivity and heat dissipation capabilities, quickly diverting lightning and fault currents and protecting the transmission lines.
This structure allows OPGW to achieve "multi-purpose use": the outer layer provides lightning protection and current diversion, while the inner layer transmits signals. It eliminates the need for separate communication optical cables, saving tower resources and reducing construction costs, making it particularly suitable for mountainous areas, cross-river projects, and long-distance ultra-high-voltage lines.
Unlike ordinary optical cables, OPGW must be resistant to high temperatures, short circuits, corrosion, and strong electromagnetic interference. When a short circuit occurs in the power system, the cable temperature rises instantaneously. The OPGW's structural design protects the optical fiber from damage, ensuring uninterrupted communication.
Currently, OPGW has become a key infrastructure for smart grids, ultra-high-voltage projects, and new energy grid integration. It carries vital signals from relay protection, dispatch data, video surveillance, and line sensing, serving as the "nerve network" for the power grid's automation and digitalization.
From structural design to material application, OPGW optical cables fully integrate power and communication technologies, supporting the safe operation of the national power grid with their compact, reliable, and efficient characteristics. Understanding its structure and function provides a clearer picture of how the modern power grid achieves both safety and intelligence within a single cable.
