In modern information society, high-speed internet, telecommunications networks, and data transmission have become central to daily life and business operations. Optical fiber cables, as the cornerstone of modern communication technology, are widely used in global communication networks. However, for ordinary users, the concept of optical fiber cables may still be vague, and they may even confuse them with network cables or power cables. So, what exactly is an optical fiber cable? Is it a network cable or a power cable?
I. Definition and Basic Concepts of Optical Fiber Cables
An optical fiber cable is a communication medium that uses light signals to transmit data within glass or plastic fibers. It consists of multiple optical fibers, wrapped with an outer protective material, and is used for long-distance, high-speed, low-loss data transmission. The core technology of optical fiber cables is optical fiber communication, which transmits data in the form of light pulses through the principles of light refraction and total internal reflection.
Compared to traditional copper cables, optical fiber cables have the following significant advantages:
1. High-speed transmission: The transmission speed of light signals is close to the speed of light, with bandwidth reaching hundreds of Gbps or even Tbps.
2. Low Loss: Optical signals experience extremely low attenuation in optical fibers, making them suitable for long-distance transmission.
3. Interference Resistance: Optical fibers are non-conductive and immune to electromagnetic interference, making them suitable for complex environments.
4. High Security: Optical signals are difficult to eavesdrop on, ensuring data security.
5. Lightweight and Compact: Optical cables are small in size and lightweight, facilitating cabling.
Optical cables are widely used in internet backbone networks, telecommunications networks, data centers, enterprise LANs, and home broadband access (such as fiber-to-the-home).

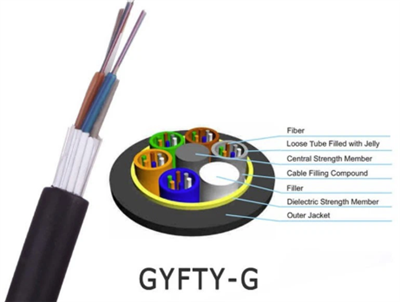

II. Structure and Composition of Optical Cables
Optical cables have a complex but sophisticated structure, typically consisting of the following parts:
1. Fiber Core: The central part of the optical fiber, made of high-purity glass or plastic, responsible for transmitting optical signals. The core diameter is typically between 8-62.5 micrometers (approximately 8-10 micrometers for single-mode fiber and approximately 50-62.5 micrometers for multimode fiber).
2. Cladding: A glass or plastic layer surrounding the optical fiber core, with a lower refractive index than the core, ensuring that the optical signal is transmitted within the core through total internal reflection.
3. Coating: A soft plastic layer protecting the optical fiber core and cladding, preventing mechanical damage.
4. Reinforcing Components: Such as aramid fibers or steel wires, used to enhance the tensile strength of the optical cable.
5. Outer Sheath: The outermost protective layer, usually made of polyethylene (PE) or polyvinyl chloride (PVC), providing moisture resistance, fire resistance, and abrasion resistance.
6. Other Components: Depending on the application, the optical cable may include a waterproof layer, an armor layer (for rodent protection), or flame-retardant materials.
Based on the usage environment, optical cables can be classified into various types, such as indoor optical cables, outdoor optical cables, and submarine optical cables. Outdoor optical cables typically have stronger protective performance, while submarine optical cables need to withstand high-pressure and corrosive environments.
III. Working Principle of Optical Cables
The working principle of optical cables is based on the refraction and total internal reflection of light. When an optical signal (usually generated by a laser or LED) enters the fiber core, it undergoes repeated total internal reflection within the core due to the difference in refractive index between the core and cladding, thus propagating along the fiber. Data is encoded in the form of optical pulses (e.g., bright pulses represent "1", dark pulses represent "0"), and photoelectric converters (such as optical modules) convert electrical signals to optical signals at the transmitting and receiving ends.
Fiber optic communication systems typically include the following components:
• Optical transmitter: Converts electrical signals to optical signals.
• Optical fiber: The medium for transmitting optical signals.
• Optical receiver: Converts optical signals back to electrical signals.
• Optical amplifier: Enhances optical signals and reduces attenuation during long-distance transmission.
Single-mode fiber is suitable for long-distance transmission (such as transnational submarine cables), while multimode fiber is suitable for short-distance, high-bandwidth applications (such as internal data center connections).
IV. Differences between Optical Cables, Network Cables, and Electrical Cables
1. Optical Cables
• Function: Transmits optical signals for high-speed data communication (such as the Internet, telephone, and video).
• Medium: Glass or plastic optical fiber, transmitting data via light pulses.
• Speed and Bandwidth: Extremely high bandwidth, up to Tbps, suitable for ultra-high-speed networks.
• Distance: Transmission distance can reach tens or even hundreds of kilometers with low loss.
• Interference Resistance: Immune to electromagnetic interference, suitable for complex environments.
• Applications: Telecommunications backbone networks, data centers, FTTH, enterprise networks.
2. Network Cable (Ethernet Cable)
• Function: Transmits electrical signals for local area network (LAN) data communication.
• Medium: Copper core (such as twisted pair), common types include Cat5e, Cat6, and Cat7.
• Speed and Bandwidth: Lower bandwidth; Cat6 supports 10Gbps (short distance), Cat7 is higher but still much lower than optical fiber.
• Distance: Transmission distance is usually limited to 100 meters; repeater equipment is required beyond that.
• Interference Resistance: Susceptible to electromagnetic interference; a shielding layer (such as STP cable) is required to improve interference resistance.
• Applications: Home LANs, office networks, short-distance device connections.
3. Wires (Power Cables)
• Function: Transmits electrical energy, supplying power to equipment or buildings.
• Medium: Copper or aluminum core, encased in insulation and a sheath.
• Speed and Bandwidth: Transmits only power, not data.
• Distance: Transmission distance varies from a few meters to hundreds of kilometers depending on voltage and cable type.
• Interference Resistance: Sensitive to electromagnetic interference; proper wiring is required to avoid interfering with communication equipment.
• Applications: Household electricity, industrial power supply, power transmission.
-Fiber optic cable is neither a network cable nor a power cable. It is a communication medium specifically designed for data transmission, completely different in function and principle from network cables (communication lines that transmit electrical signals) and power cables (power lines that transmit electrical energy). While there is some overlap in applications between fiber optic cables and network cables in the communication field (such as home broadband), fiber optic cables have significantly higher bandwidth and transmission distances than network cables, while power cables have no functional overlap with fiber optic cables.
V. Application Scenarios of Optical Fiber Cables
1. Telecommunications and Internet:
• Optical fiber cables form the backbone of the global internet, connecting intercontinental data centers and communication base stations.
• Submarine optical cables (such as the Asia-Pacific Submarine Cable (APCN2)) handle cross-border data transmission, covering tens of thousands of kilometers.
2. Home Broadband (FTTH):
• Fiber to the Home (FTTH) technology directly connects optical cables to homes, providing 100 Mbps or even gigabit broadband.
• Fiber broadband coverage has exceeded 90%, driving high-bandwidth applications such as 4K video and cloud gaming.
3. Data Centers:
• Multimode optical cables are used within data centers to connect servers and storage devices, supporting cloud computing and big data processing.
• Single-mode optical cables are used for long-distance interconnection between data centers.
4. Industry and the Internet of Things (IoT):
• Optical fiber cables provide stable and high-speed communication support in smart manufacturing, power monitoring, and transportation systems.
• Their anti-interference characteristics are suitable for complex environments such as factories and railways.
5. Medical and Scientific Research:
• Fiber optics are used in medical equipment such as endoscopes and laser surgery.
• Scientific research utilizes fiber optics to transmit massive amounts of experimental data.
VI. Selection and Maintenance Considerations for Fiber Optic Cables
1. Selection Recommendations
• Clarify the intended use: Choose single-mode fiber optic cables for home use and multimode fiber optic cables for data centers.
• Check certifications: Choose products that comply with ITU-T standards (such as G.652, G.657).
• Brand selection: Prioritize well-known brands such as Huawei, YOFC, and Corning.
• Match equipment: Ensure the fiber optic cable is compatible with optical modules and connectors (such as LC, SC).
2. Maintenance Considerations
• Avoid bending: A small bending radius in fiber optics can lead to signal attenuation.
• Clean connectors: Use specialized tools to clean the fiber optic end face to prevent dust from affecting transmission.
• Regular inspection: Use an optical time domain reflectometer (OTDR) to check for fiber optic cable loss and breaks.
• Professional Installation: Fiber optic cable installation must be completed by a professional team to avoid damage.
With the widespread adoption of 5G, IoT, and cloud computing, the importance of fiber optic cables will further increase. Understanding the nature and applications of fiber optic cables not only helps clarify common misconceptions but also provides guidance for selecting and using related technologies.
