ASU High-Quality Cable
Product Overview

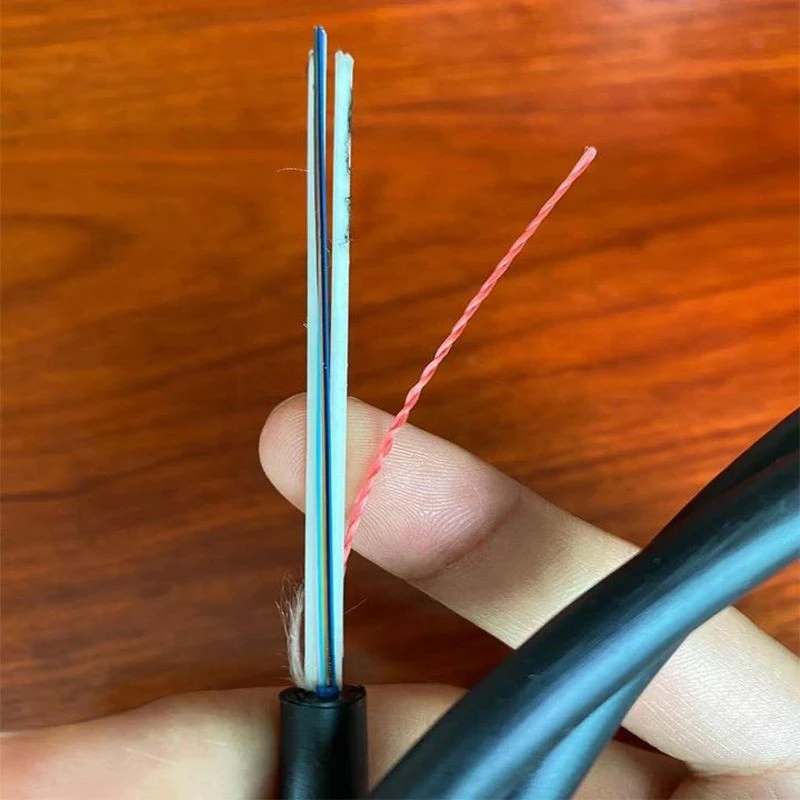

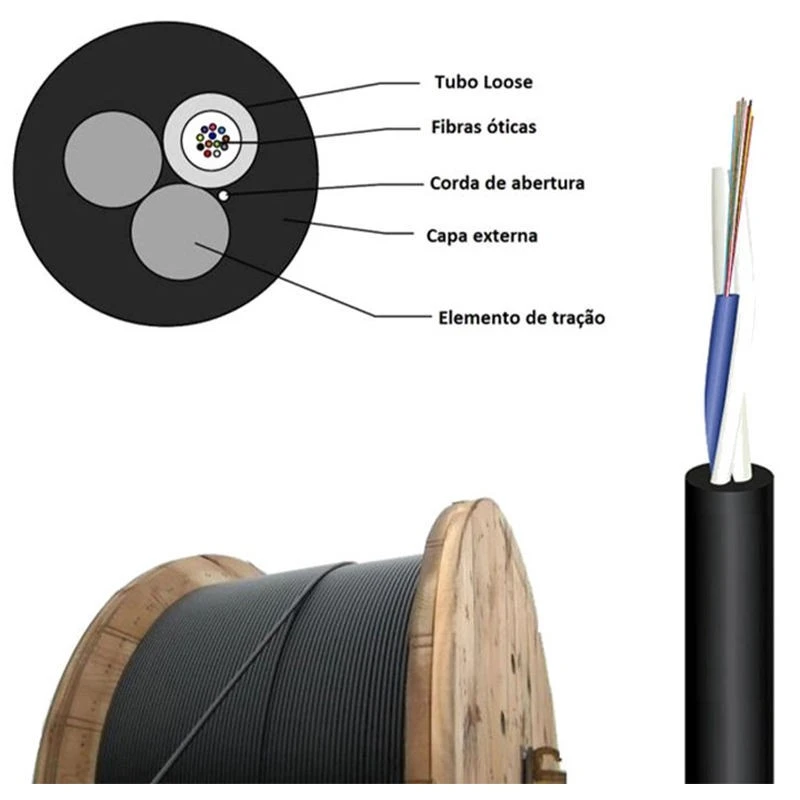

ASU High-Quality Cable, is a compact fiber optic cable engineered for aerial deployment without messenger wires. The cable features 250μm fibers positioned within high-modulus PBT loose tubes, reinforced by two FRP (Fiber Reinforced Plastic) strength members, and sheathed with HDPE or anti-tracking (AT) polyethylene . This all-dielectric construction-containing zero metal components-makes it an ideal solution for overhead installations where electromagnetic interference and lightning risks are concerns .
Key Applications
FTTx Last-Mile Access: Ideal for the final overhead segment from distribution points to subscriber premises in FTTH and FTTB networks, with typical spans up to 120 meters .
5G Small Cell Backhaul: Lightweight design supports dense urban 5G fronthaul connectivity across streetlights and utility poles .
Rural & Suburban Networks: Provides cost-effective connectivity for rural pole networks where shorter pole spacing is common .
Smart City Infrastructure: Deploys for CCTV, traffic cameras, and building links where trenching is impractical .
Key Advantages
Cost-Effective: 20-30% more economical than standard ADSS cables by replacing expensive aramid yarn with FRP and reducing overall dimensions .
Lightweight & Compact: Weighs only 38-65 kg/km with diameters of 6.6-8.2mm, significantly reducing pole loading and simplifying logistics .

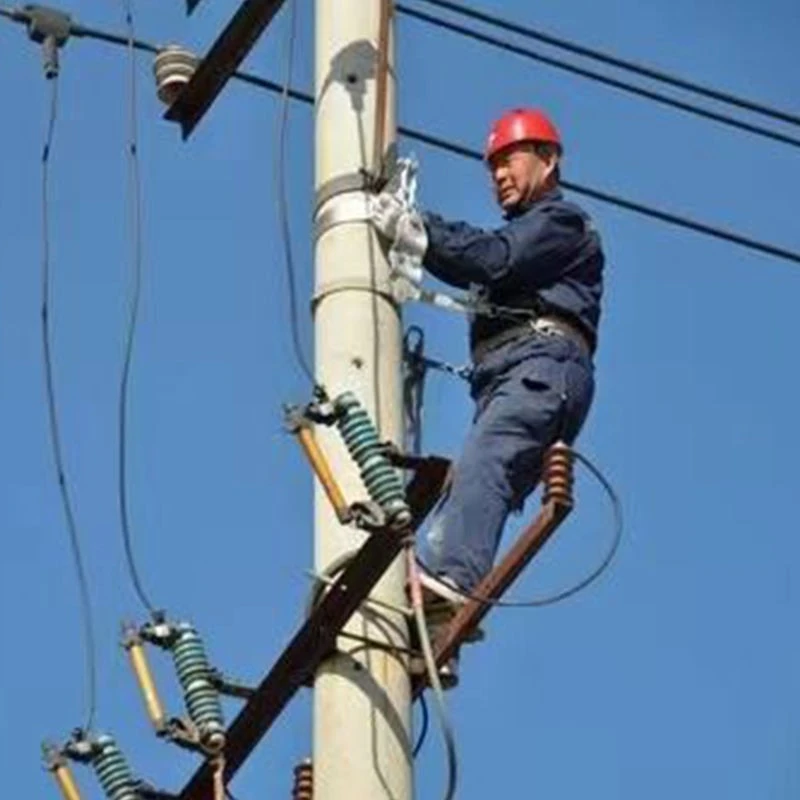

Live-Line Installation: Non-metallic construction allows installation without power shutdowns on lines up to 35kV, eliminating grounding requirements .
Environmental Resilience: Validated from -40°C to +70°C with UV and moisture resistance; gel-filled or dry water-blocking options available .
Long Service Life: Designed for 30+ years of reliable service with superior corrosion and electro-erosion resistance .
Key attributes
|
Brand Name |
Sheng Tang |
Model Number |
ASU Cable |
|
Type |
Fiber Optic Cable |
Place of Origin |
Guangdong, China |
|
Number of Conductors |
≥ 10 |
Model Number |
ASU |
|
Loose tube |
PBT |
Number of C |
≥ 10 |
|
Fiber Type |
single mode/multimode |
Sheath |
PE /AT |
|
Fiber count |
2-288 |
MOQ |
2000Meter/Meters |
|
Application |
Telecommunication, Aerial, Duct |
Port |
GUANGZHOU |
|
Place of Origin |
Guangdong, China (Mainland) |
Packaging and delivery

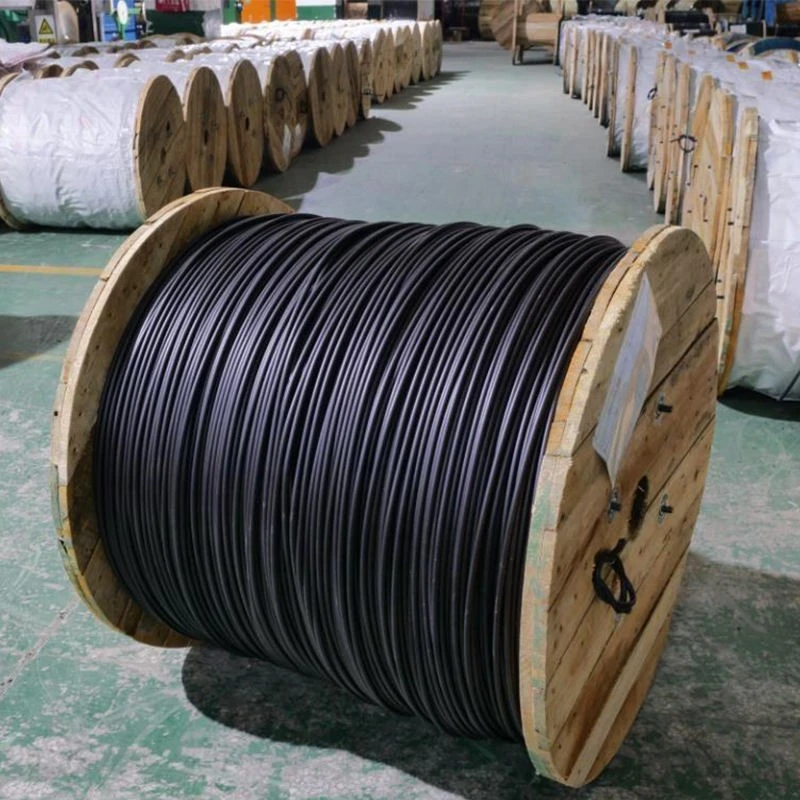

| Packaging Details | ADSS fiber optic cable 's packing way: wooden drum or wooden iron drum 1000 m to 3000 m per drum, or any length size as customer required. | Port of dispatch | GUANGZHOU, SHENZHEN |
| Selling Units | Single item | Single package size | 20X25X10 cm |
| Single gross weight | 2.000 kg | Packaging examples |  |
Supply capacity
| Supply Ability | 10000 kilograms per Month |
Lead time
| Quantity (meters) | 1 - 10000 | 10001 - 900000 | > 900000 |
| Lead time (days) | 5 | 25 | To be negotiated |
Customization options
| Option | Min. order: | Customization fee |
|
Customized logo As requested |
1000 meters | -- |
|
Customized packaging As requested |
1000 meters | -- |
|
Graphic customization As requested |
1000 meters | -- |
Company Information
Packaging & Shipping
FAQ
Q1: What is the difference between ASU cable and standard ADSS?
A: ASU is often called "Mini-ADSS." The primary difference is span capability: ASU supports 80-120m spans using FRP strength members, while ADSS can reach 200m+ using aramid yarn. ASU is lighter, more compact, and typically 20-30% cheaper for short-span applications .
Q2: Can ASU cable be installed on power poles with live lines?
A: Yes. Since ASU is an all-dielectric cable with no metal components, it can be safely installed alongside live power lines up to 35kV without requiring power outages or grounding hardware .
Q3: What is the maximum fiber count available?
A: ASU cables typically support 2 to 288 fibers per cable, with the most common configurations offering 2-24 fibers in a single loose tube design .
Q4: What are the standard span lengths and tensile ratings?
A: Standard spans are 80m, 100m, or 120m with rated tensile strengths of 1.5-2kN, verified through rigorous cyclic-load testing .
Q5: What delivery options are available?
A: Standard lead time is 5-7 days after order confirmation. Cables are supplied on wooden/steel drums with 2km-5km per drum. MOQ starts at 1km, and OEM customization (logo, packaging) is available .
