Key attributes
|
Brand Name |
Sheng Tang |
Model Number |
ADSS |
|
Type |
Fiber Optic Cable |
Place of Origin |
Guangdong, China |
|
Number of Conductors |
≥ 10 | Model Number | ADSS |
| Loose tube | PBT | Number of C | ≥ 10 |
| Fiber Type | single mode/multimode | Sheath | PE /AT |
| Fiber count | 2-288 | MOQ | 2000Meter/Meters |
| Application | Telecommunication, Aerial, Duct | port | GUANGZHOU |
| Place of Origin | Guangdong, China (Mainland) |
Packaging and delivery
| Selling Units | Single item | Single package size | 20X25X10 cm |
| Single gross weight | 2.000 kg |
Lead time
| Quantity (meters) | 1 - 1000 | 1001 - 30000 | 30001 - 600000 | > 600000 |
| Lead time (days) | 3 | 10 | 15 | To be negotiated |
Customization options
| Option | Min. order: | Customization fee |
|
Customized logo As requested |
1000 meters | -- |
|
Customized packaging As requested |
1000 meters | -- |
|
Graphic customization As requested |
1000 meters | -- |
Product Description
Outdoor 4 6 8 12 24 36 Core Adss G652D Optical Fiber Cable Manufacturers Price Aerial Single Mode Cable Optic Fiber.
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20°C) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.4dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHz/km |
≥200MHz/km |
|
@1300nm |
|
|
≥1000MHz/km |
≥600MHz/km |
|
|
Numerical Aperture |
|
|
0.2±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|

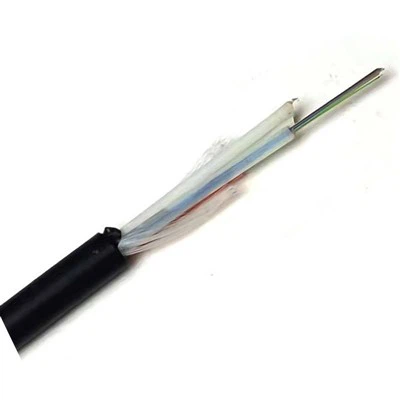

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Characteristics
1. Large span lengths and the largest span is over 1700 m.
2. Non-metallic material, with high insulating property performances as well as lightning-proof.
3. Special anti-track outer sheath protection, strong anti-electro-corrosion ability.
4. The aramid yarn ensure the cable's tensile resistance, and also have good bullet-proof performance.
5. Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the tower.
6. Can be installed without shutting off the power.
Company Information
Packaging & Shipping
FAQ
Q1. What's the MOQ?
A: The MOQ of Fiber Optic cable is 1km.
Q2. What's delivery time?
A: The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q3. How to Store the Optical Fiber Cable Properly?
A: Store the drum indoor before using, the drum should place sideways not on the end.
Q4. Can you supply customized products and logo?
A: Yes. We supply OEM service. You can send us your drawing.
Q5. What's your payment terms?
A: We accept T/T, L/C, Western Union, D/P etc. 30% in advance and 70% before shipment.
