Key attributes
|
Brand Name |
Sheng Tang |
Model Number |
Gyts53 |
|
Type |
outdoor fiber optic cable |
Place of Origin |
Guangdong, China |
|
Number of Conductors |
≥ 10 |
Loose tube |
PBT |
|
Number of C |
≥ 10 |
Fiber Type |
single mode/multimode |
|
Sheath |
PVC, LSZH, TPU |
Fiber count |
2-288 Cores |
|
MOQ |
2000Meter/Meters |
Application |
Telecommunication, Aerial, Duct |
|
Port |
GUANGZHOU |
Place of Origin |
Guangdong, China (Mainland) |
Packaging and delivery

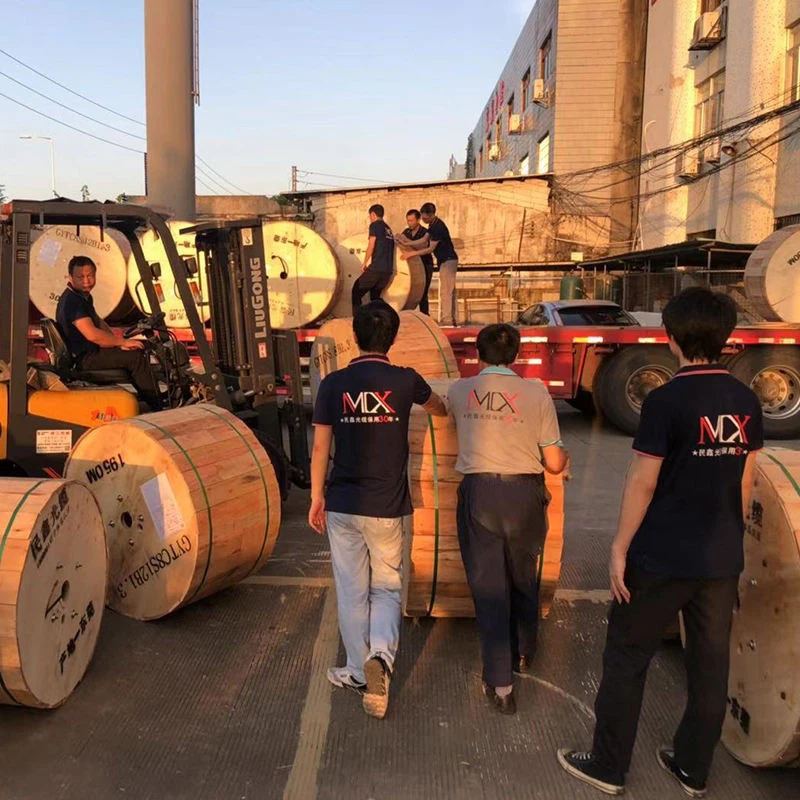

| Packaging Details | GYTS53 fiber optic cable's packing way: wooden drum or wooden iron drum 1000 m to 3000 m per drum, or any length size as customer required. | Port of dispatch | GUANGZHOU, SHENZHEN |
| Selling Units | Single item | Single package size | 20X25X10 cm |
| Single gross weight | 2.000 kg | Packaging examples |  |
Lead time
| Quantity (meters) | 1 - 10000 | 10001 - 900000 | > 900000 |
| Lead time (days) | 10 | 20 | To be negotiated |
Customization options
| Option | Min. order: | Customization fee |
|
Customized logo As requested |
1000 meters | -- |
|
Customized packaging As requested |
1000 meters | -- |
|
Graphic customization As requested |
1000 meters | -- |
Product Description
Manufacturer Produce Outdoor Anti Rodent Direct Buried Armored Single Mode 96 144 Core Fiber Optic Cable Gyts53.
| Cable Count (cores) | Tubes + Fillers | Out Sheath Diameter (mm) | Weight (kg/km) |
Min Tensile Strength (Long/ Short Term N) |
Min Crush Resistance (Long/ Short Term N/100mm) |
Min Bending Radius (Static/ Dynamic mm) |
| 2 ~ 36 | 6 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| 38 ~ 72 | 6 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| 74~96 | 8 | 15.9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| 98 ~120 | 10 | 18 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| 122 ~144 | 12 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| 146~288 | 18 | 20.9 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
Model: GYTS53 /GYTA53
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Optical Cable Characteristics
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Company Information
Packaging & Shipping
FAQ
Q1. What's the MOQ?
A: The MOQ of Fiber Optic cable is 1km.
Q2. What's delivery time?
A: The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q3. How to Store the Optical Fiber Cable Properly?
A: Store the drum indoor before using, the drum should place sideways not on the end.
Q4. Can you supply customized products and logo?
A: Yes. We supply OEM service. You can send us your drawing.
Q5. What's your payment terms?
A: We accept T/T, L/C, Western Union, D/P etc. 30% in advance and 70% before shipment.
